Informazioni dettagliate

Numero di parte:

366-9315

MOQ:

Evidenziare:

E320d excavator chassis wiring harness

excavator wiring harness replacement

366-9315 excavator electrical harness

Descrizione di prodotto

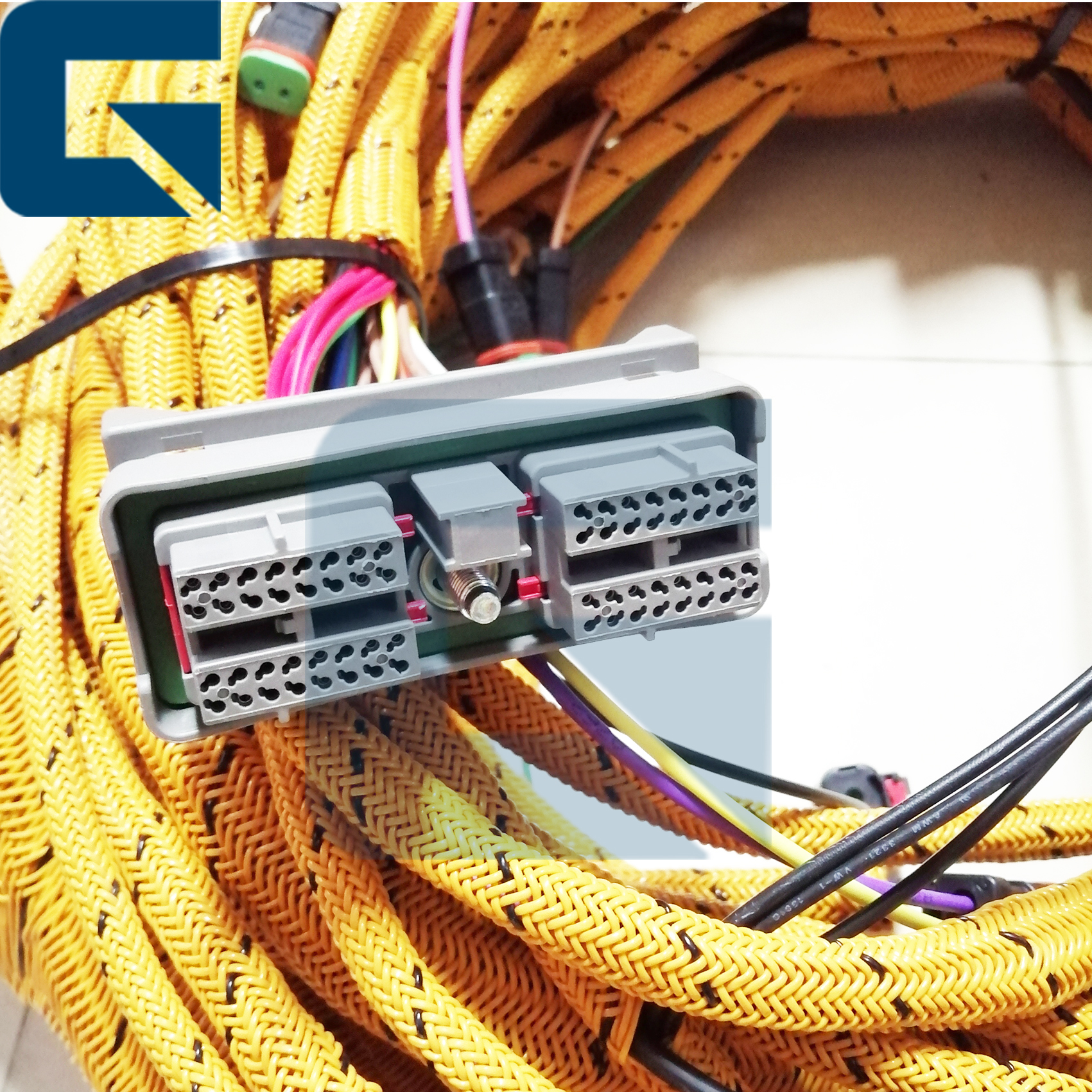

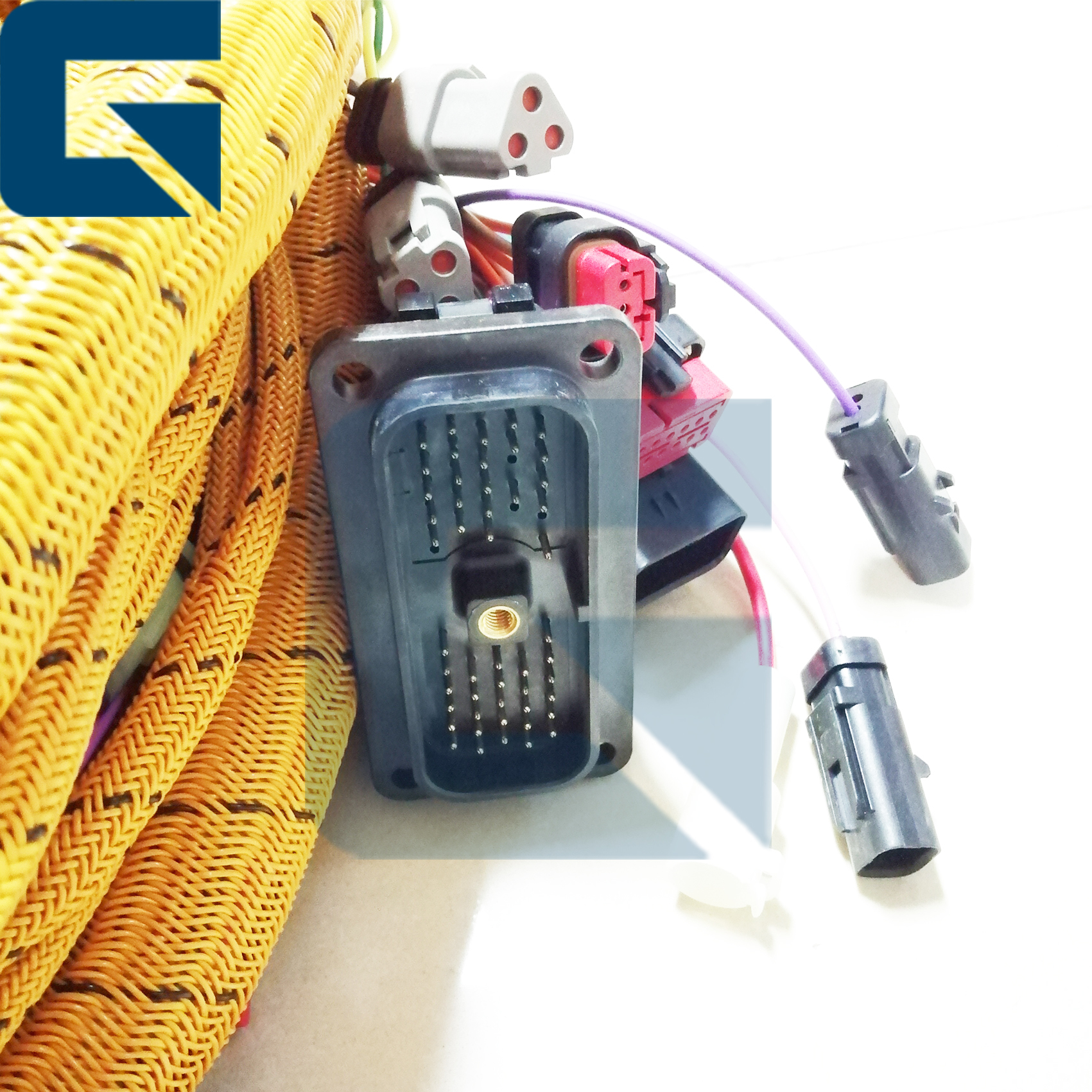

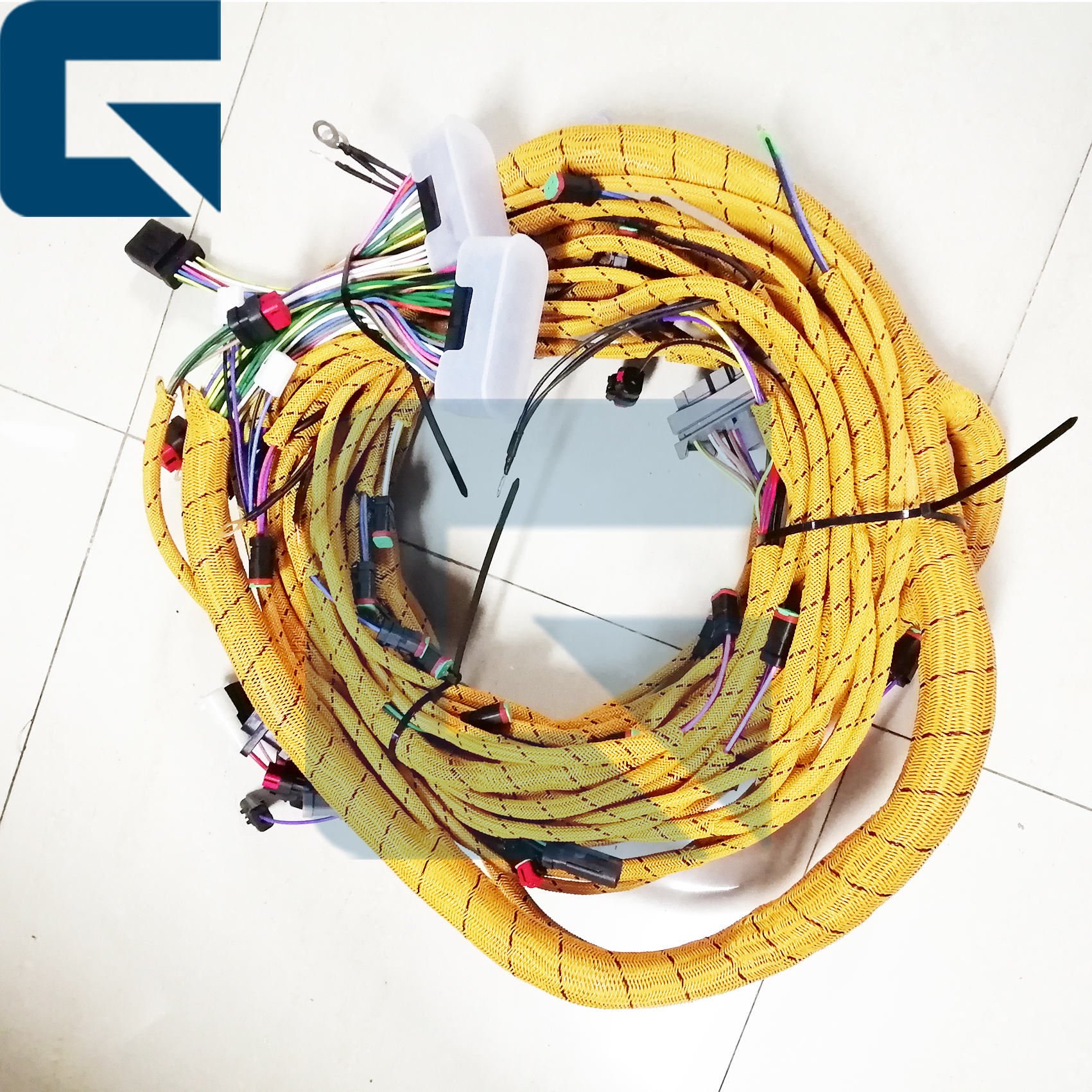

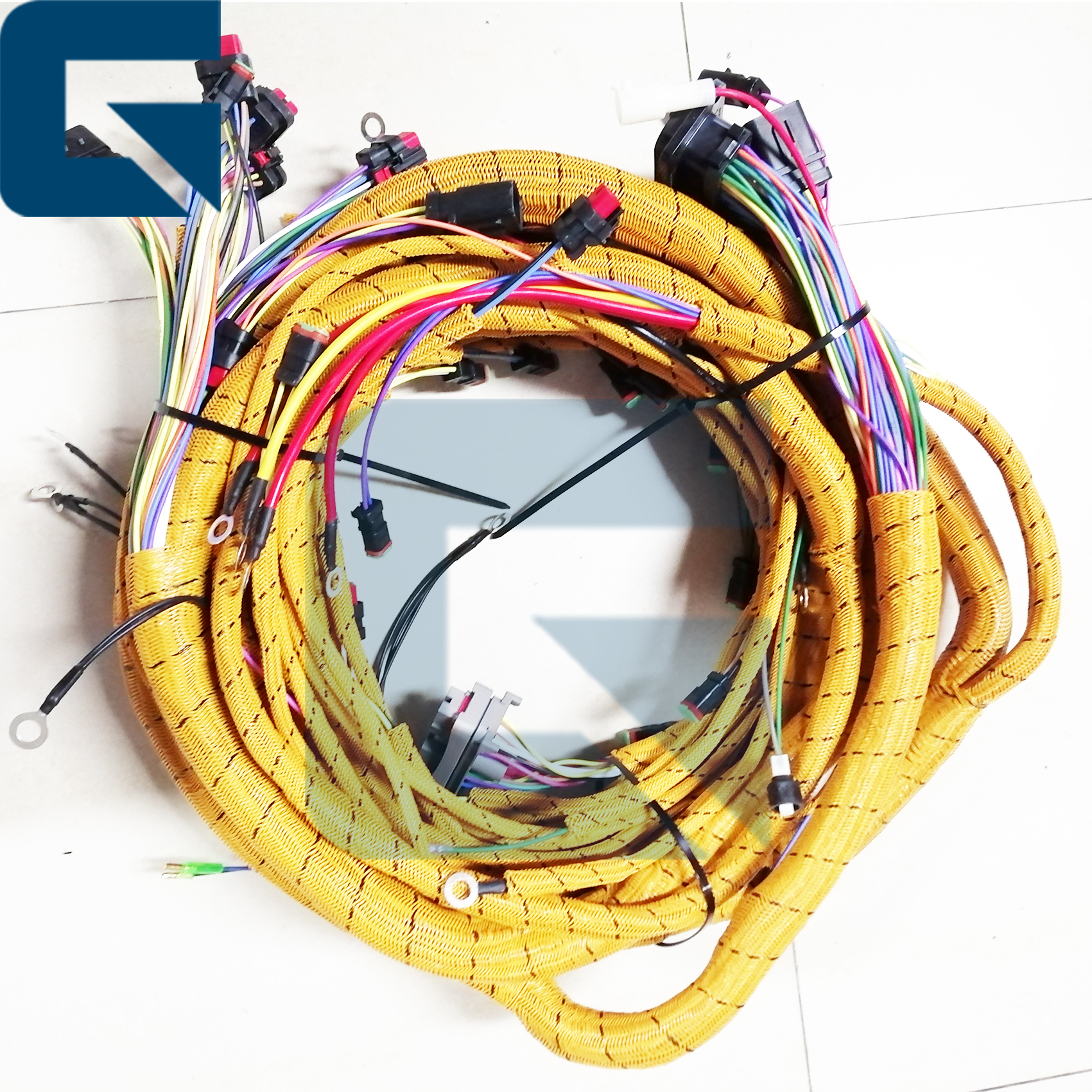

366-9315 3669315 Chassis Wiring Harness for E320d Excavator

Product Overview

The 366-9315 Fuse Box Wire Harness is specifically designed for E320d Excavator applications. This brand new wiring harness ensures reliable electrical connectivity and optimal performance.

Product Specifications

Product Name	Wiring Harness
Part Number	366-9315
Brand Name	JIAJUE
Model	E320D
Condition	Brand New
Availability	Rich Stock
Delivery Time	Usually delivery 1-3 days after payment
Approximate Weight	11KG
Size (for 1pc)	50cm x 50cm x 50cm
Delivery Methods	DHL FedEx TNT UPS
Shipment	Dispatched within 24-48 hours
Payment Methods	TT, Western Union, Credit Card, Paypal

Product Testing

Step-by-Step Testing Guide

Pro-Tip: HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.

Connecting each plug of the wire harness to the corresponding hole on the test bench
Each time a switch is turned on, a function is tested. The corresponding indicator light turns on, indicating that the function is normal.

Quick Checklist for Buyers

Preparation	Requirement
Battery	Must be disconnected
Old Harness	Compare with the new one first
Pins/Plugs	Clean and straight
Routing	Smooth path, no sharp edges
Fastening	Secure but not over-tightened

Frequently Asked Questions

Q1: How long does it take to install the chassis harness to the machine?

Installing a complete E320D chassis harness, under normal conditions and without additional faults, requires 4-6 hours by mechanic (2 people working together).

Q2: How do we determine if a chassis harness is damaged?

E320D machine walking abnormality: drive motor solenoid not working, walking speed switching malfunction, fault codes appear or disappear when walking or shaking the wiring harness.

Q3: How does the chassis harness ensure compatibility with the E320D excavator?

It need us check:

Whether the circuit functions are consistent
Whether the number and arrangement of the plugs and pins are consistent
Whether the electrical voltage parameters are matched

Q4: What's your payment method?

Our payment method has T/T, L/C, PayPal, etc.

Q5: Do you have stock?

Rich stock

Product Video

366-9315 3669315 Chassis Wiring Harness for E320d Excavator 2

Luogo di origine:	Cina
Marca:	JIAJUE
Numero di modello:	E320C

Quantità di ordine minimo:	1
Prezzo:	Please send mail or WhatsApp
Imballaggi particolari:	366-9315 3669315 Il cablaggio del telaio per l'escavatore E320d è confezionato in un imballaggio
Tempi di consegna:	1 Giorno lavorativo
Termini di pagamento:	L/C,D/A,D/P,T/T,Western Union,
Capacità di alimentazione:	1000 pezzi/mese

366-9315 3669315 Chassis Wiring Harness for E320d Excavator
