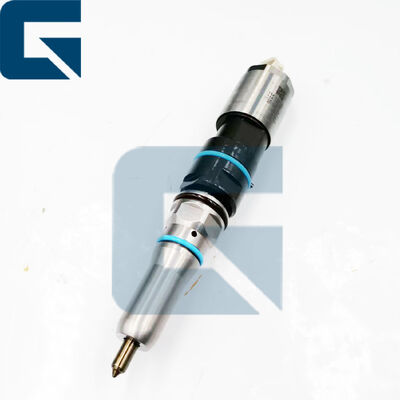

460-8213 4608213 Fuel Injector for C9.3 Engine Parts

460-8213 4608213 Fuel Injector for C9.3 Engine Parts
460-8213 4608213 Fuel Injector for C9.3 Engine Parts 460-8213 4608213 Fuel Injector for C9.3 Engine Parts 460-8213 4608213 Fuel Injector for C9.3 Engine Parts 460-8213 4608213 Fuel Injector for C9.3 Engine Parts
Informazioni di base
Luogo di origine: Cina
Marca: Jiajue
Numero di modello: C9.3
Quantità di ordine minimo: 1 pz
Prezzo: $180/pc
Imballaggi particolari: 460-8213 4608213 L'iniettore di carburante per le parti del motore C9.3 è imballato in un imball
Tempi di consegna: 1-5 giorni lavorativi
Termini di pagamento: L/C,D/A,D/P,T/T,Western Union,
Capacità di alimentazione: 100 pezzi/mese
Miglior prezzo Contattaci
Informazioni dettagliate
Nome del prodotto: Iniettore di carburante materiale: Acciaio
Luogo di origine: Guangdong, Cina MOQ: 1
OEM: supporto
Evidenziare:

C9.3 engine fuel injector

,

Diesel fuel injector with warranty

,

460-8213 fuel injector replacement

Descrizione di prodotto

460-8213 4608213 Fuel Injector for C9.3 Engine Parts
Product Overview

460-8213 4608213 Fuel Injector designed specifically for C9.3 engines, manufactured with precision engineering for optimal performance and reliability.

Specifications
Product Name Fuel Injector
Part Number 460-8213
Engine Model C9.3
Type Engine Parts
Place of Origin GUANGZHOU
Brand Name JIAJUE
MOQ 1 Piece
Condition New
Availability Rich Stock
Approximate Weight 1KG
Size (per piece) 20cm x 5cm x 8cm
Warranty 3 Months
Shipment Dispatched within 3 days

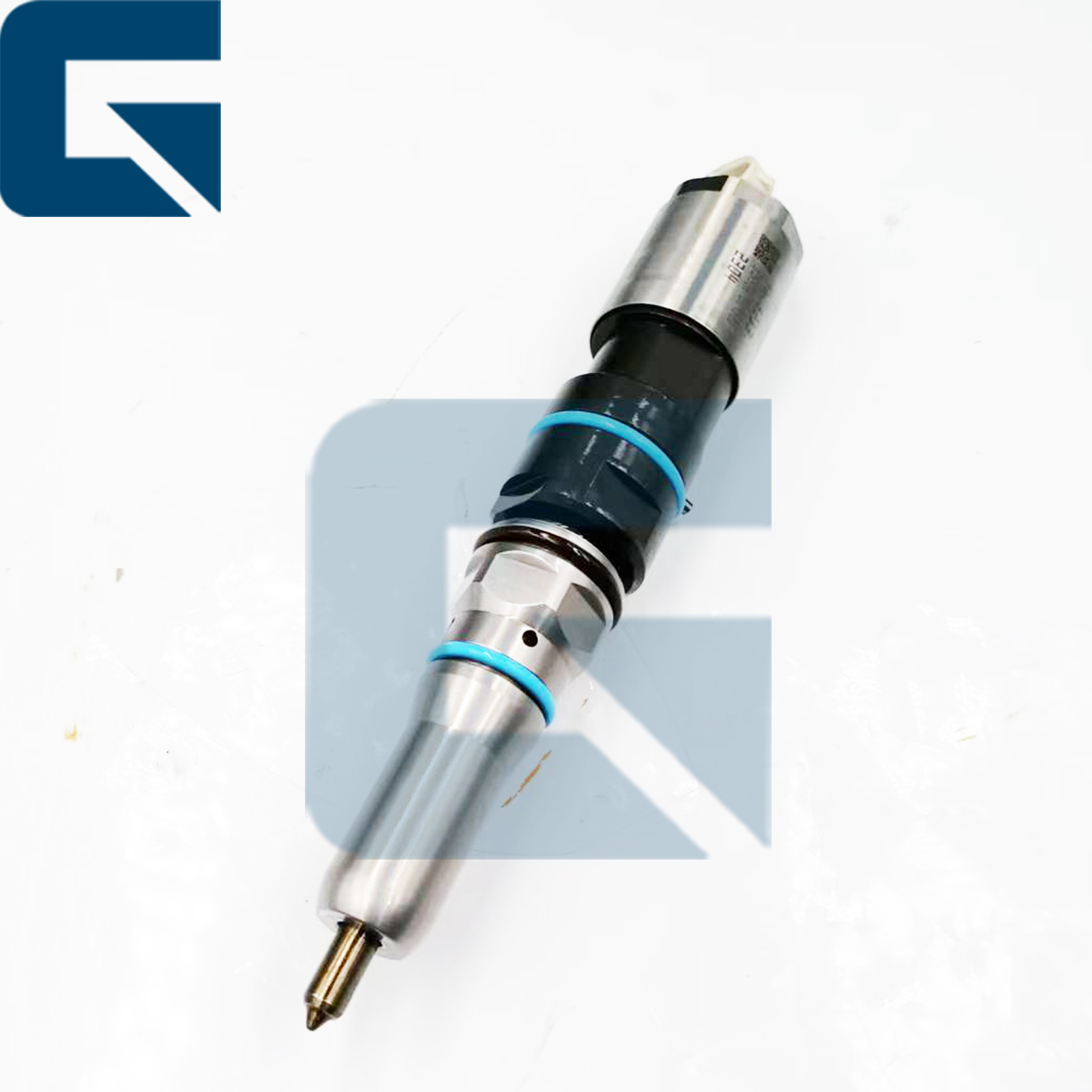

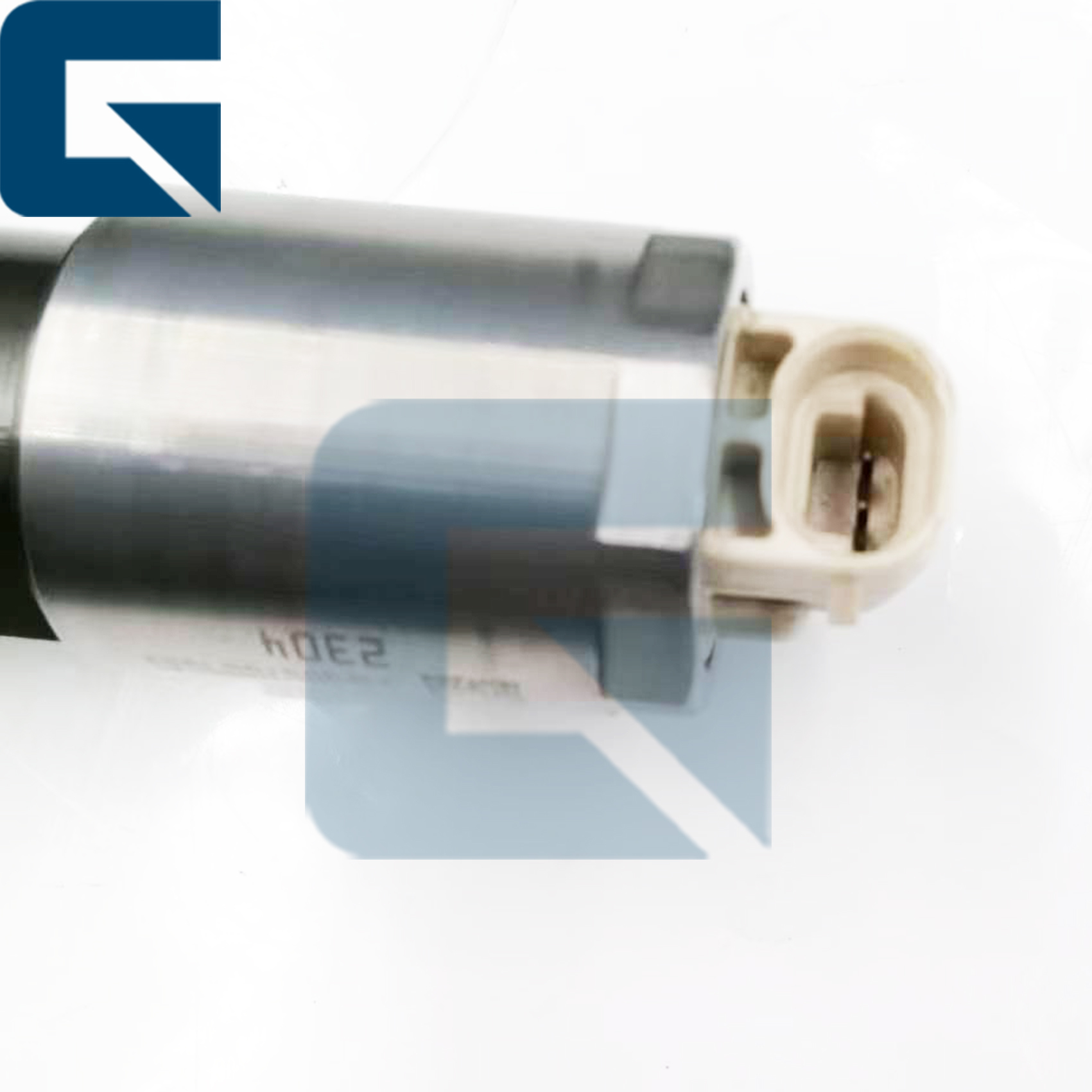

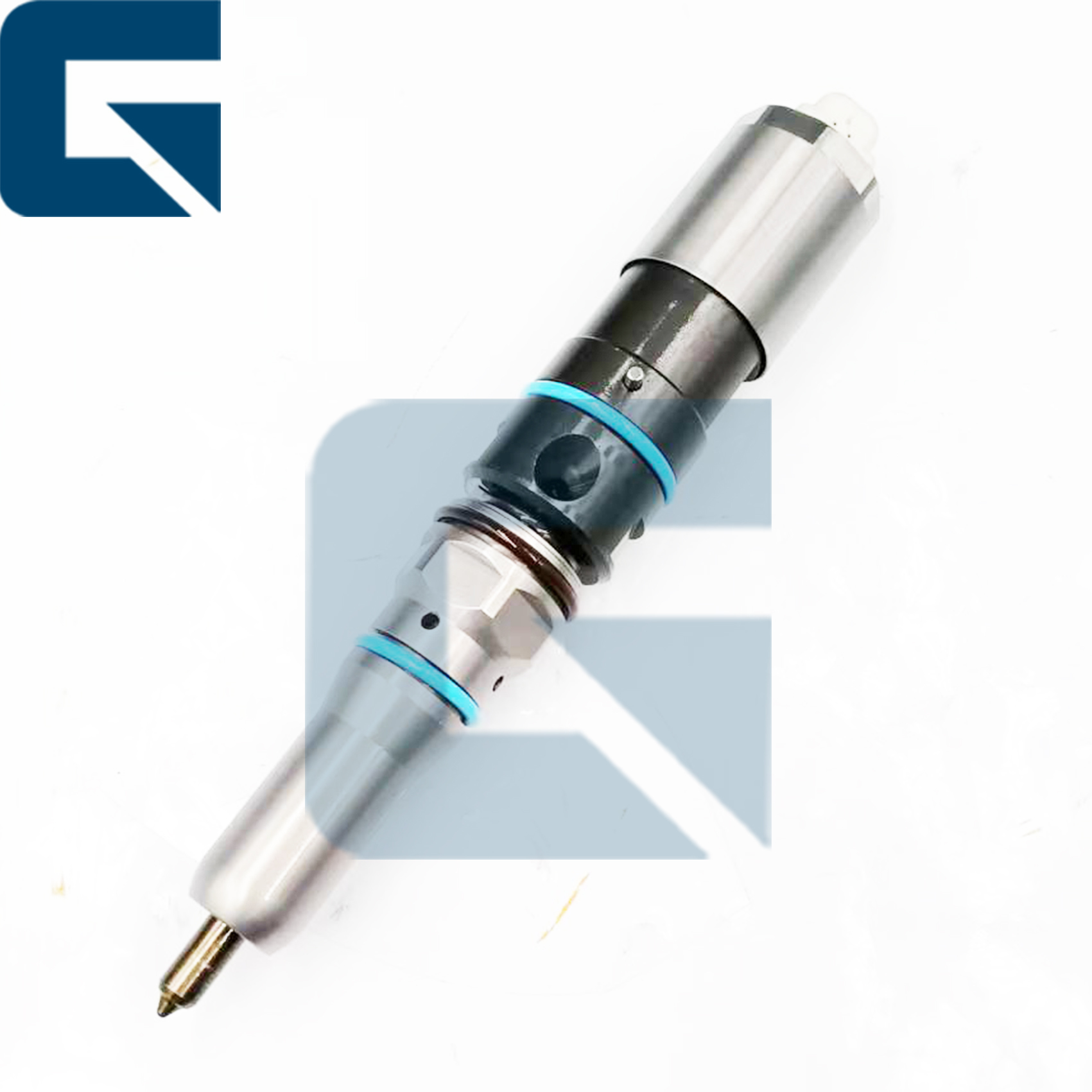

Product Images
460-8213 4608213 Fuel Injector for C9.3 Engine Parts 0 460-8213 4608213 Fuel Injector for C9.3 Engine Parts 1 460-8213 4608213 Fuel Injector for C9.3 Engine Parts 2 460-8213 4608213 Fuel Injector for C9.3 Engine Parts 3
Related Products
460-8213 4608213 Fuel Injector for C9.3 Engine Parts 4
Frequently Asked Questions
Q1: How do I install my fuel injector after purchasing it?
Please refer to the "Step-by-Step Installation Guide" on our product details page, which contains detailed installation instructions.
Q2: What precautions should I take before installing my fuel injector?
The installation environment must be dust-free; lubricate the O-ring with clean machine oil before installation to prevent oil leakage; ensure the O-ring is installed correctly.
Q3: Why is my engine still unusable after replacing the fuel injector?
This is common due to air trapped in the high-pressure oil rail. Cycle the engine in short bursts (no more than 30 seconds) to purge air. It may take several attempts to stabilize pressure.
Q4: Is my device compatible with this part number of fuel injectors?
If unsure about compatibility, send us your Engine Serial Number (ESN) for free verification.
Q5: How to determine if your fuel injectors need replacing?
  • Cylinder Cut-out Test: Using diagnostic software (ET), shut off cylinders one by one and observe engine speed fluctuations.
  • Fuel Rail Pressure Test: Check for internal leaks preventing system pressure buildup.
  • Back-leakage Test: Excessive back-leakage indicates severe wear of internal control valve assembly.
  • Visual Inspection: Inspect fuel injector nozzles for carbon buildup, blockage, or corrosion.
Q6: How long will it take to receive my package after payment?
Delivery time depends on your country/region and customs clearance. Contact us with your address and postal code for shipping costs and estimated delivery time.
Step-by-Step Installation Guide
HEUI (Hydraulic Electronic Unit Injection) systems are extremely sensitive to contamination. A single speck of dust can cause premature failure.
  1. Preparation: Clean the injector bores thoroughly. Ensure no carbon debris, old O-rings, or fuel/oil residue at the bottom of the seat. Inspect the injector sleeve for pitting or erosion.
  2. Lubrication: Apply clean engine oil to the three O-rings and backup rings. Warning: Never use grease. Only use clean engine oil to ensure seals slide in without tearing.
  3. Seating the Injector: Push the injector down firmly by hand until you feel it "seat." Install the hold-down clamp and bolt.
  4. Torque Specifications: Tighten the bolt to 30 N⋅m±7 N⋅m (22 lb-ft). Over-tightening can crack the injector body; under-tightening causes combustion gas leakage.
  5. Trim Code Programming: Locate the 6-digit alphanumeric code on the top of the injector solenoid. Use ET (Electronic Technician) software to program this code into the ECM for precise fuel delivery synchronization.
Troubleshooting Guide
Issue Root Cause Solution
Black Smoke Poor spray atomization or stuck needle valve causing dripping Inspect the air filter
Hard Start Internal leakage in the injector leading to insufficient starting oil pressure Inspect the injector O-rings and internal seals
Engine Misfire Faulty solenoid valve coil or worn internal valve components Inspect wiring harness connections and replace damaged injectors
Company Profile
460-8213 4608213 Fuel Injector for C9.3 Engine Parts 5
Exhibition
460-8213 4608213 Fuel Injector for C9.3 Engine Parts 6 460-8213 4608213 Fuel Injector for C9.3 Engine Parts 7
Factory Environment
460-8213 4608213 Fuel Injector for C9.3 Engine Parts 8
Packaging & Shipping
460-8213 4608213 Fuel Injector for C9.3 Engine Parts 9 460-8213 4608213 Fuel Injector for C9.3 Engine Parts 10
